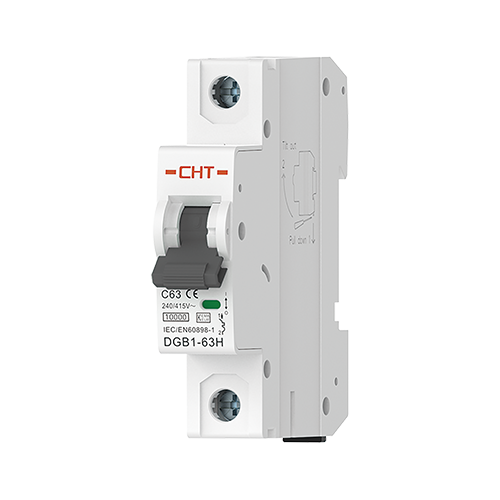

DGB1-63H

DGB1-63/DGB1-63H Miniature Circuit Breakers with 6KA/10kA breaking capacity was designed to provide protection against short circuit and overload for domestic,commercial and industrial electrical installations

DGB1-63/DGB1-63H Miniature Circuit Breakers with 6KA/10kA breaking capacity was designed to provide protection against short circuit and overload for domestic,commercial and industrial electrical installations



DGB1-63H
  • Type designation
  • Product Information
  • Inquiry
  • Technical Data
  • Related Products
DGB1 Enterprise code
63H Breaking capacity H: 10kA No mark: 6kA Frame rated current (A)
1P Number of poles: 1P/1P+N/2P/3P/3P+N/4P
C Instantaneous Trip characteristic type: B, C, D, CK, K
40 Rated current (A) 1,2,4,5,6,10,16,20 25,32,40,50,63
OF2 accessories MX2/OF2/S MV+MN2
DGB1-63H

Tripping Characteristic Curves

Product and installation dimensions(MM)

DGB1-63/DGB1-63H should be installed on DIN rail terminal and can be connected to the wire less than 25mm2

Order information

  • Please specify the product model and specification, and the type, rated current, number of poles, and order

quantity of the instantaneous release when ordering.

  • Order example: DGB1(H) series miniature circuit breaker, breaking capacity 10kA, C-type instantaneous
  • release, rated current 32A, two-pole, 1000
  • Specified as: DGB1-63H C32 2P 1000 units

Inquiry

    Technical Data

    Product name DGB1-63 DGB1-63H
    Standards IEC60898-1 IEC60898-1
    Certificate KEMA, SAA, CE, SEMKO, CCC, CB KEMA, SAA, CE, SEMKO, CCC, CB
    Electrical characteristics
    Number of poles 1P/1P+N/2P/3P/3P+N/4P 1P/1P+N/2P/3P/3P+N/4P
    Rated frequency (Hz) 50/60 50/60
    Frame current (A) Inm 63 63
    Rated current (A) In 1,2,4,5,6,10,16,20,25,32,40,50,63 1,2,4,5,6,10,16,20,25,32,40,50,63
    Rated voltage (V) AC240V/415V  (230V/400V) AC240V/415V  (230V/400V)
    Rated insulation voltage (V) Ui 690 690
    Rated impulse withstand voltage (kV)Uimp 4 4
    Rated short-circuit breaking capacity (kA)Ics 6 7.5
    Rated short-circuit breaking capacity (kA)Icn 6 10
    Instantaneous trip characteristics B,C,D, CK,K B,C,D, CK,K
    Trip form Thermal magnetic trip Thermal magnetic trip
    Pollution level 2 2


    Electrical and mechanical accessories

    		 MV+MN2 (overvoltage and undervoltage),

    OF2 (auxiliary), SD2 (alarm), MX2 (shunt)

    		 MV+MN2 (overvoltage and undervoltage),

    OF2 (auxiliary), SD2 (alarm), MX2 (shunt)
    Mechanical properties
    Electrical life 10000 10000
    Mechanical life 20000 20000
    Protection grade IP20 IP20
    Indicator window Contact status indication Contact status indication
    Normal operation conditions and installation characteristics
    Storage temperature -35℃ ~ +70℃ -35℃ ~ +70℃
    Installation site altitude ≤ 2000m ≤ 2000m
    Terminals Fixed with screw Fixed with screw
    Maximum wiring capacity 25mm2 25mm2
    Maximum limit torque Nm 3.5 3.5
    Installation category Class Ⅱ , Ⅲ Class Ⅱ , Ⅲ
    Installation method 35mm standard rail 35mm standard rail
    Incoming method Upper and lower Upper and lower



    Action performance of circuit breaker
    Rated current Start state Specified time Expected results Remarks
    1-63A Cold state 1.13 In t ≤ 1h Not trip


    Thermal Release



    1-63A



    Hot state



    1.45 In



    t < 1h



    Trip

    		 “Immediately after a) test, the current increases to the specified value within 5s.”
    ≤32

    Cold state

    		 1s < t < 60s Trip
    >32 1s < t < 120s Trip






    Magnetic Release





    1-63A





    Cold state

    		 3In(B type)



    t ≤ 0. 1s





    Not trip



    “Turn on the auxiliary switch

    for making current”
    5In (C type)
    10In(D type)




    1-63A





    Cold state

    		 5In(B type)



    t < 0. 1s





    Trip

    		 “Turn on the auxiliary switch

    for making current”
    10In(C type)
    14In(D type)
    Wiring: Suitable for wire connection of 16mm2  The screws according to the tightening torque 3.5N·m
    Rated current (A) Nominal cross area of copper wire (mm²)
    6 1.5
    10 2.5
    16, 20 4
    25 6
    32 10
    40, 50 16
    63 25
